HMMWV Ballistic Armor Support Plate RH – PN 6432287R – M1151 M1152 M1165 B-Kit Armor Mount

Description

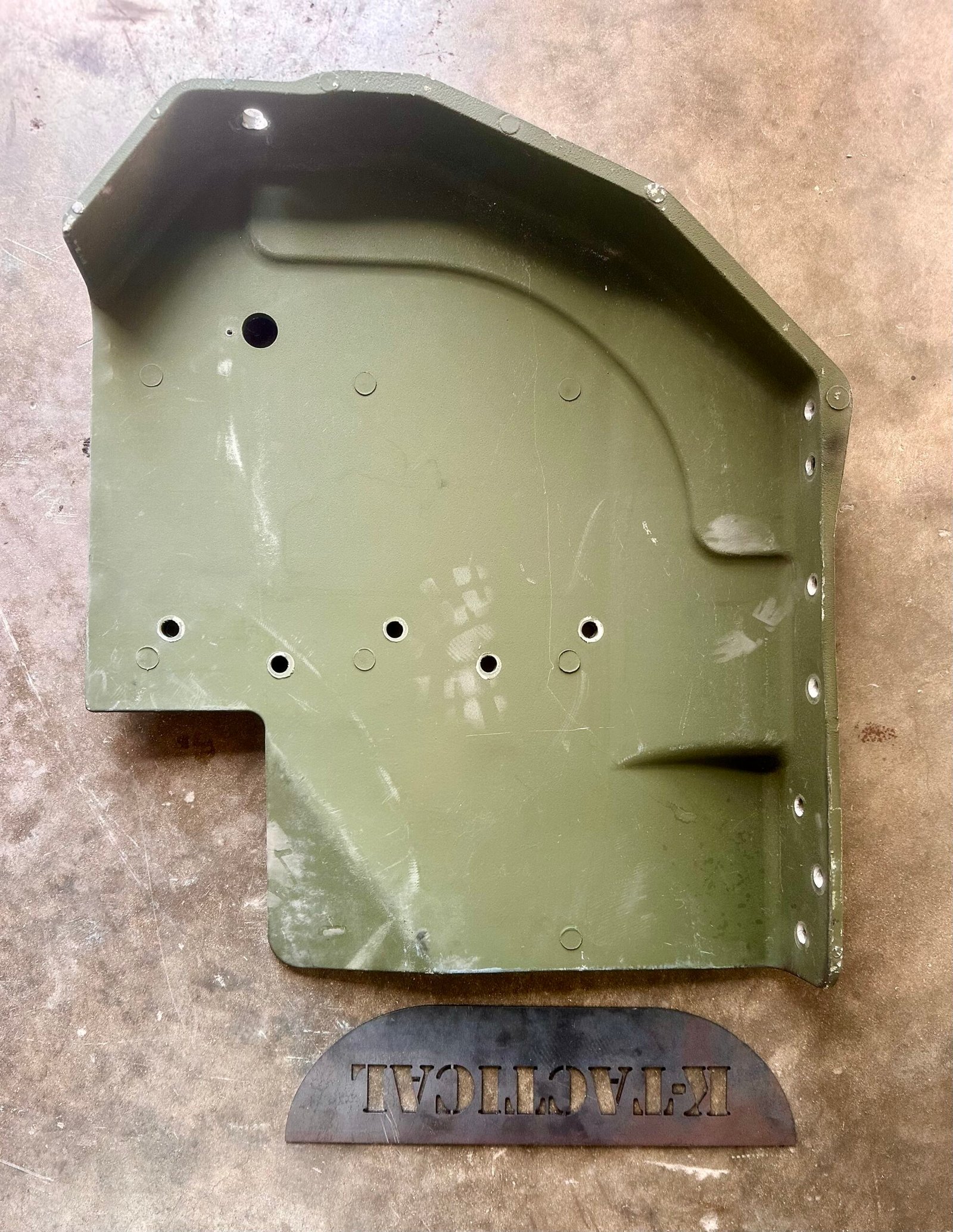

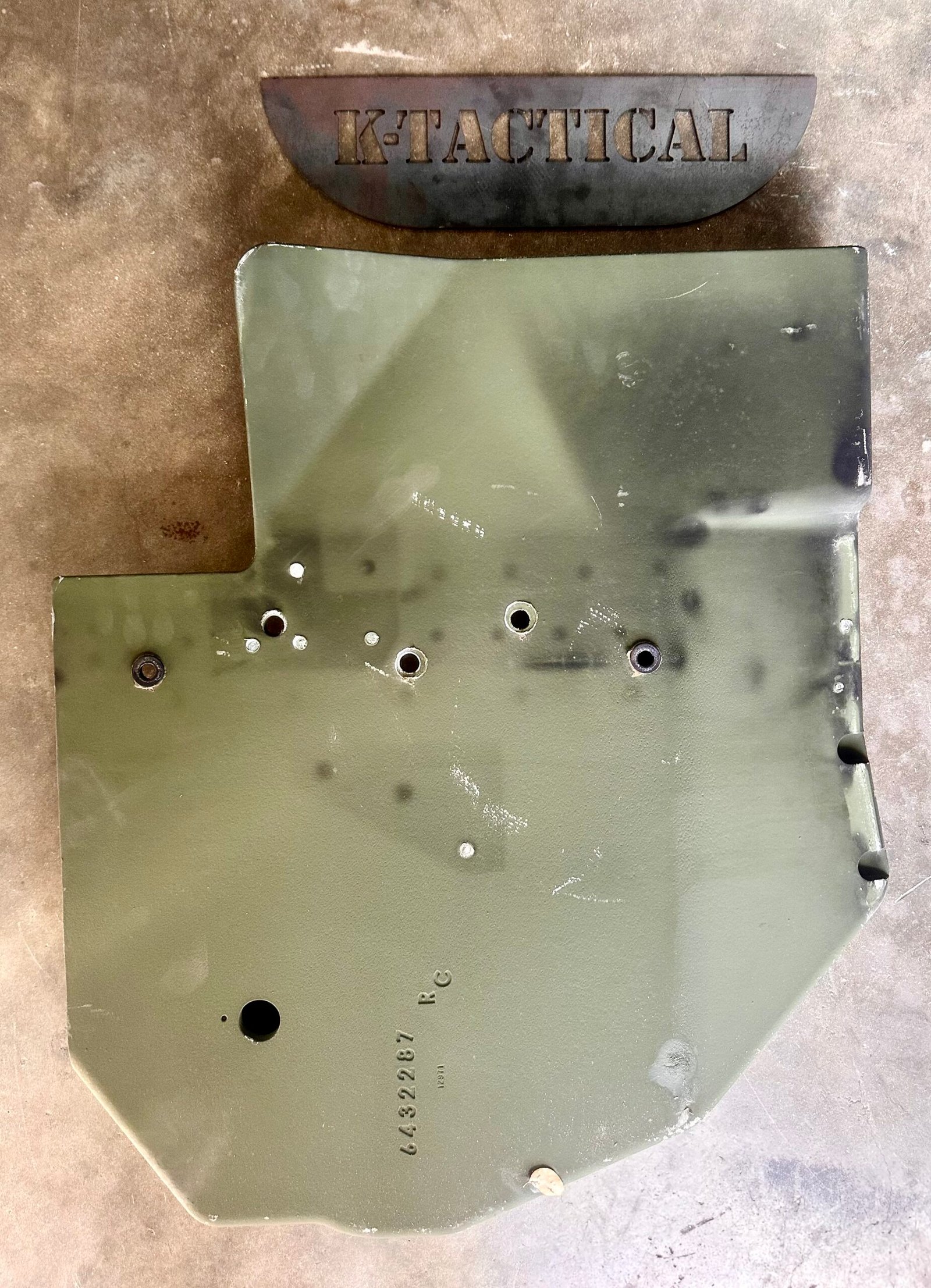

HMMWV Ballistic Armor Support Plate – Right Side (PN 6432287R)

This heavy-duty ballistic armor support plate is part of the B-Kit armor mounting system used on armored AM General HMMWV vehicles.

The plate installs on the rear body side area near the rear wheelhouse, providing structural reinforcement and secure mounting points for side ballistic armor panels, armor rails, and support brackets.

Manufactured from heavy stamped steel with reinforcement ribs, this component is designed to withstand the structural loads generated by armored vehicle configurations.

Vehicle Compatibility

Compatible with armored AM General HMMWV / Humvee models:

• M1151 HMMWV
• M1152 HMMWV
• M1165 HMMWV

Used on vehicles equipped with B-Kit armor systems.

Function

This structural plate is designed to:

• Bolt to the vehicle body side or rear wheelhouse structure
• Provide support for side ballistic armor panels
• Supply mounting points for armor rails and support brackets
• Reinforce the B-Kit armor mounting structure

Location on Vehicle

Typically installed in the:

• Rear body side area
• Near the rear wheelhouse / cargo armor mounting area
• Behind or inside the side armor panel mounting structure

Construction Features

• Heavy stamped steel construction
• Reinforced ribs for ballistic load support
• Multiple armor mounting holes
• Edge flange with body mounting bolt holes
• CARC military green protective coating

Part Information

Part Name: Ballistic Armor Support Plate
Part Number: 6432287R
Side: Right Hand (RH)
Vehicle Platform: AM General HMMWV / Humvee
