HMMWV Instrument Panel Housing / Dashboard Panel – M1114 M1151 M1165 Humvee Dash Frame
$90.00
Original HMMWV instrument panel housing / dashboard frame assembly used on armored Humvee platforms including M1114, M1151 and M1165.
This steel dashboard structure mounts the instrument cluster, ignition switch, indicator lights, hand throttle, and switch panels.
Finished in military CARC green coating and designed to bolt directly to the vehicle firewall and dash cross-brace.
4 in stock
Disclaimer
- Shipping costs and arrangements are the full responsibility of the purchaser. Shipping will be calculated based on the delivery distance and the shipping speed requested by the client to K Tactical. Local pickup is always available.
- View in own Ebay Store
Description
HMMWV Instrument Panel Housing / Dashboard Assembly
This component is the structural dashboard panel used in armored HMMWV variants.
It forms the main mounting structure for the vehicle’s gauges, switches, ignition system, and instrument cluster.
The panel is constructed from heavy stamped steel with military CARC coating, designed for durability in military service environments.
Vehicle Compatibility
Commonly used on armored or expanded-capacity Humvees including:
-
M1114 HMMWV
-
M1151 HMMWV
-
M1152 HMMWV
-
M1165 HMMWV
(Some configurations may vary depending on armor package and equipment layout.)
Function
This dashboard housing supports and mounts:
• Instrument gauge cluster
• Speedometer / tachometer
• Ignition switch (ENG-STOP / RUN / START)
• Warning indicator lights
• Light control switches
• Hand throttle assembly
• Radio control head mounts (if installed)
• Steering column surround

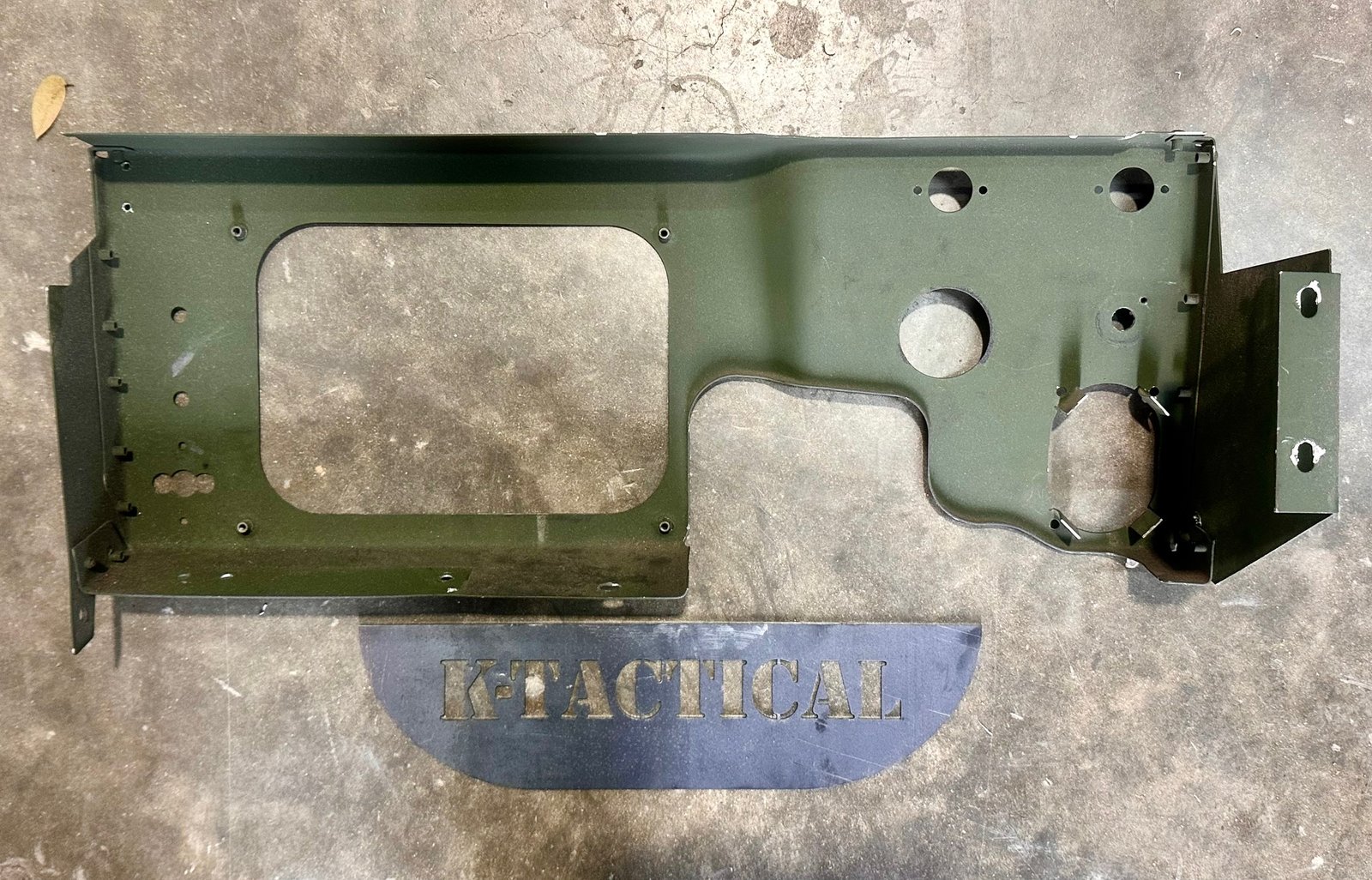

The large rectangular opening is the mounting area for the main instrument gauge cluster.

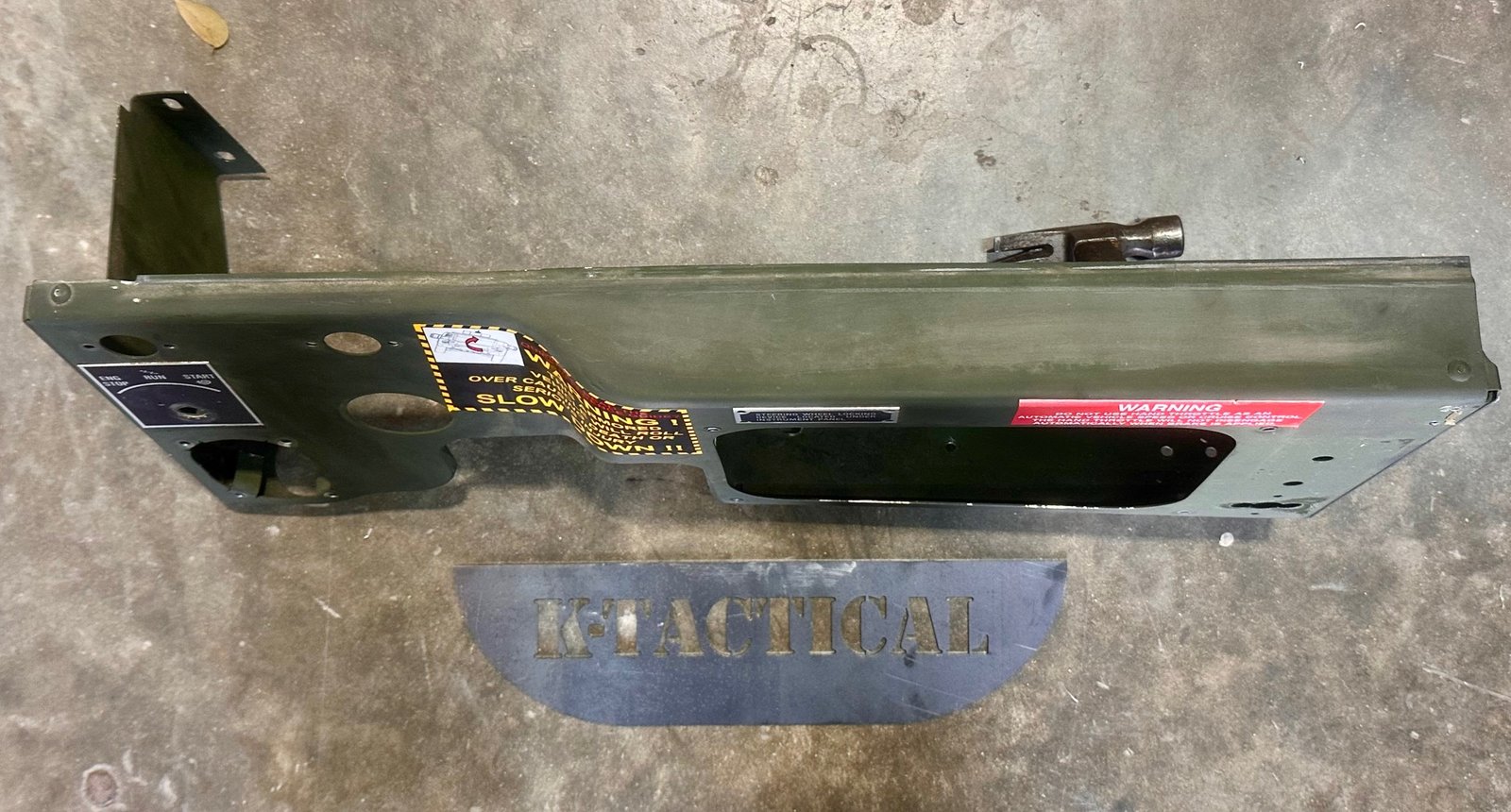

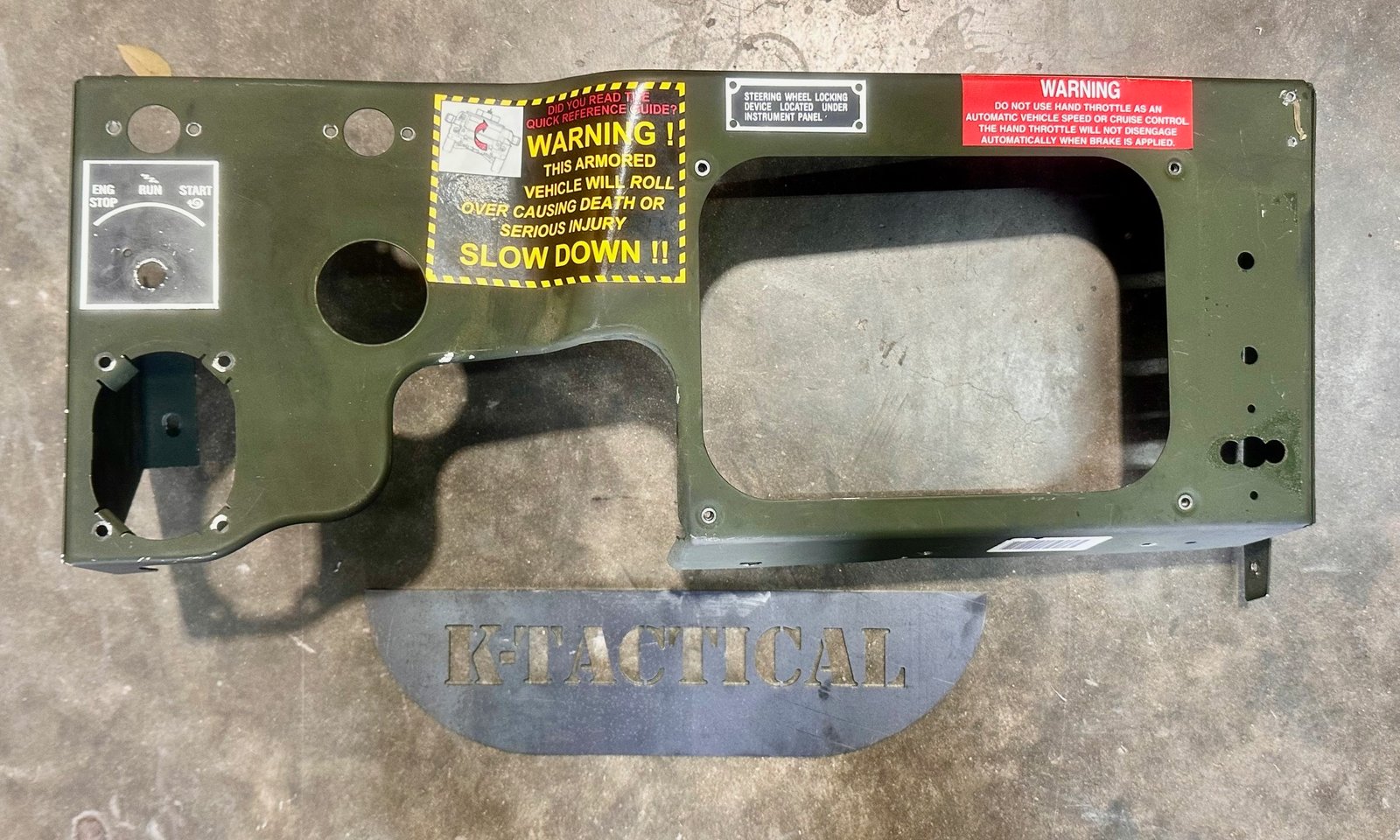

Visible Military Labels
The panel still includes several original military decals:
• Armored vehicle rollover warning
• Hand throttle warning label
• Steering wheel locking device notice
These decals were standard on armored HMMWV vehicles.
Material
• Heavy steel dashboard panel
• CARC military green coating (383 green)
• Structural mounting brackets included
Condition
Military surplus component.
Normal cosmetic wear may be present from storage or previous service.
Please review photos carefully for condition.
