HMMWV Transmission Shifter Assembly – GM 3L80 3-Speed – PN 5741561 – M998 M1025 M1038 M1097 – THIS SHIFTER INCLUDES A NEW BACKUP SWITCH INSTALLED
$275.00
Original HMMWV transmission control / shifter assembly designed for vehicles equipped with the GM 3L80 3-speed automatic transmission.
This mechanical PRND21 gate-style shifter includes the shift linkage arms, wiring connectors for safety switches, and the dash mounting bracket.
Compatible with several AM General HMMWV models including M998, M1025, M1038 and M1097.
Key Details
• Part Number: 5741561
• NSN: 2520-01-188-5464
• Transmission: GM 3L80 Automatic (3-Speed)
• Type: Mechanical transmission control / shifter assembly
• Vehicle Platform: AM General HMMWV / Humvee

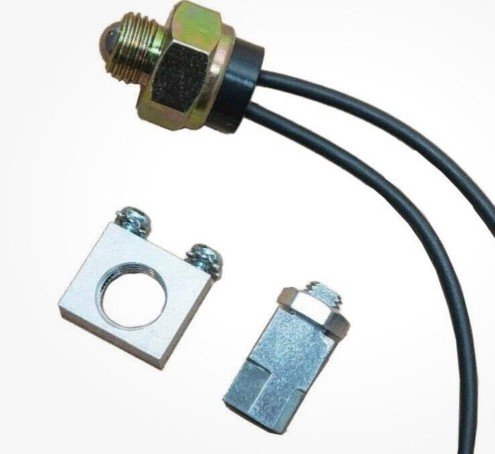

INCLUDED Reverse Back Up Light Swith Kit For HMMWV, HUMMER 12338435
1 in stock
Disclaimer
- Shipping costs and arrangements are the full responsibility of the purchaser. Shipping will be calculated based on the delivery distance and the shipping speed requested by the client to K Tactical. Local pickup is always available.
- View in own Ebay Store
Description

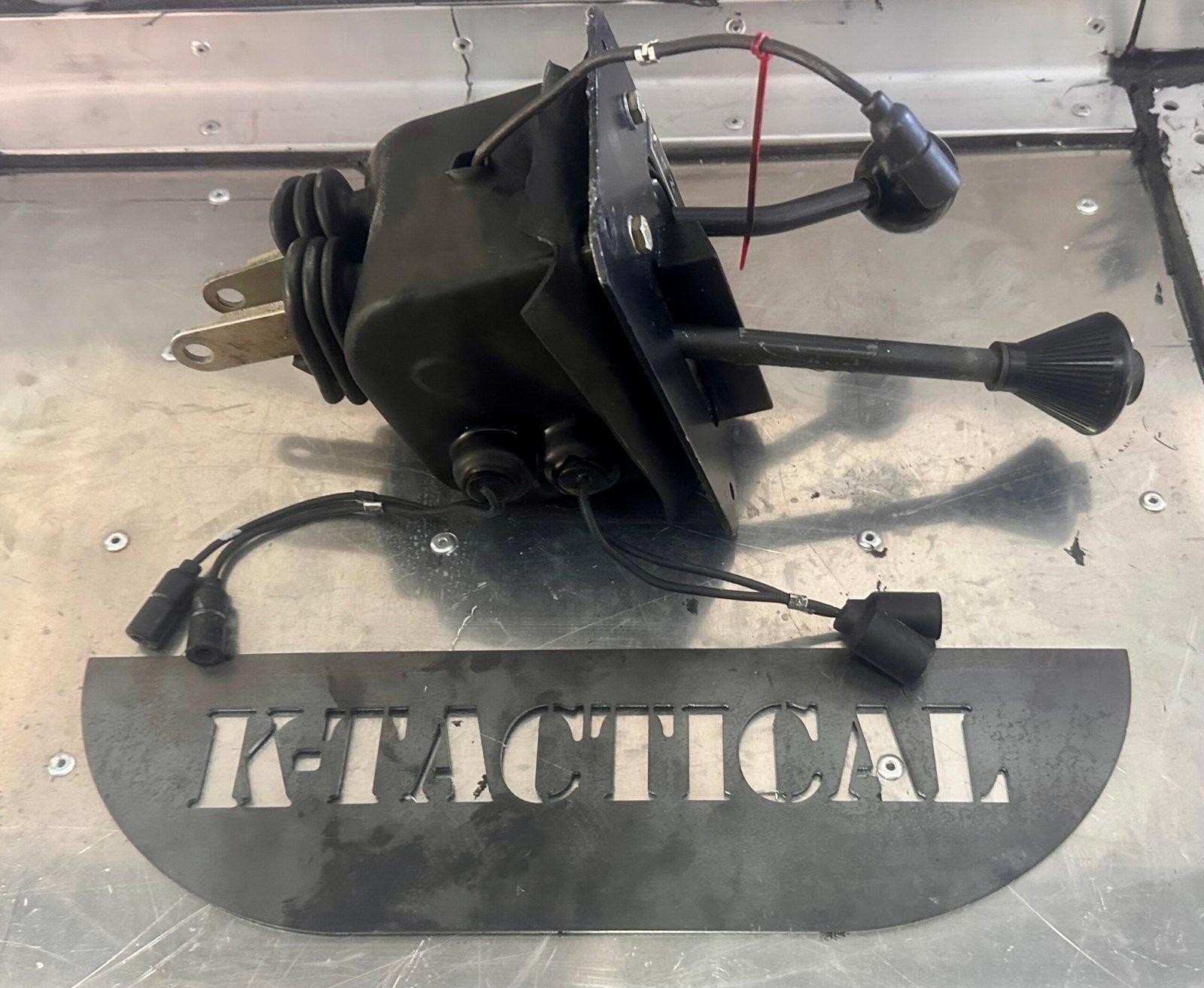

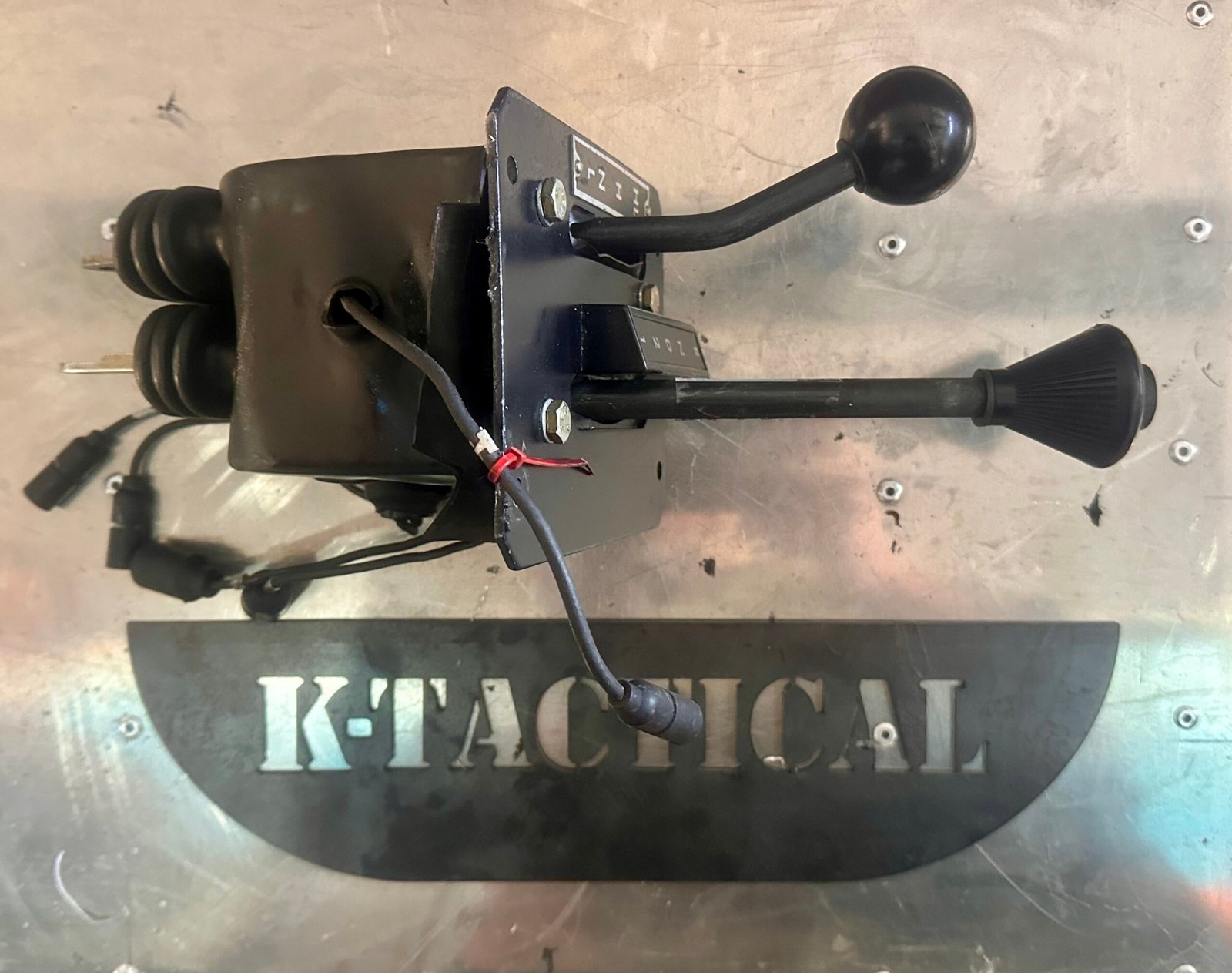

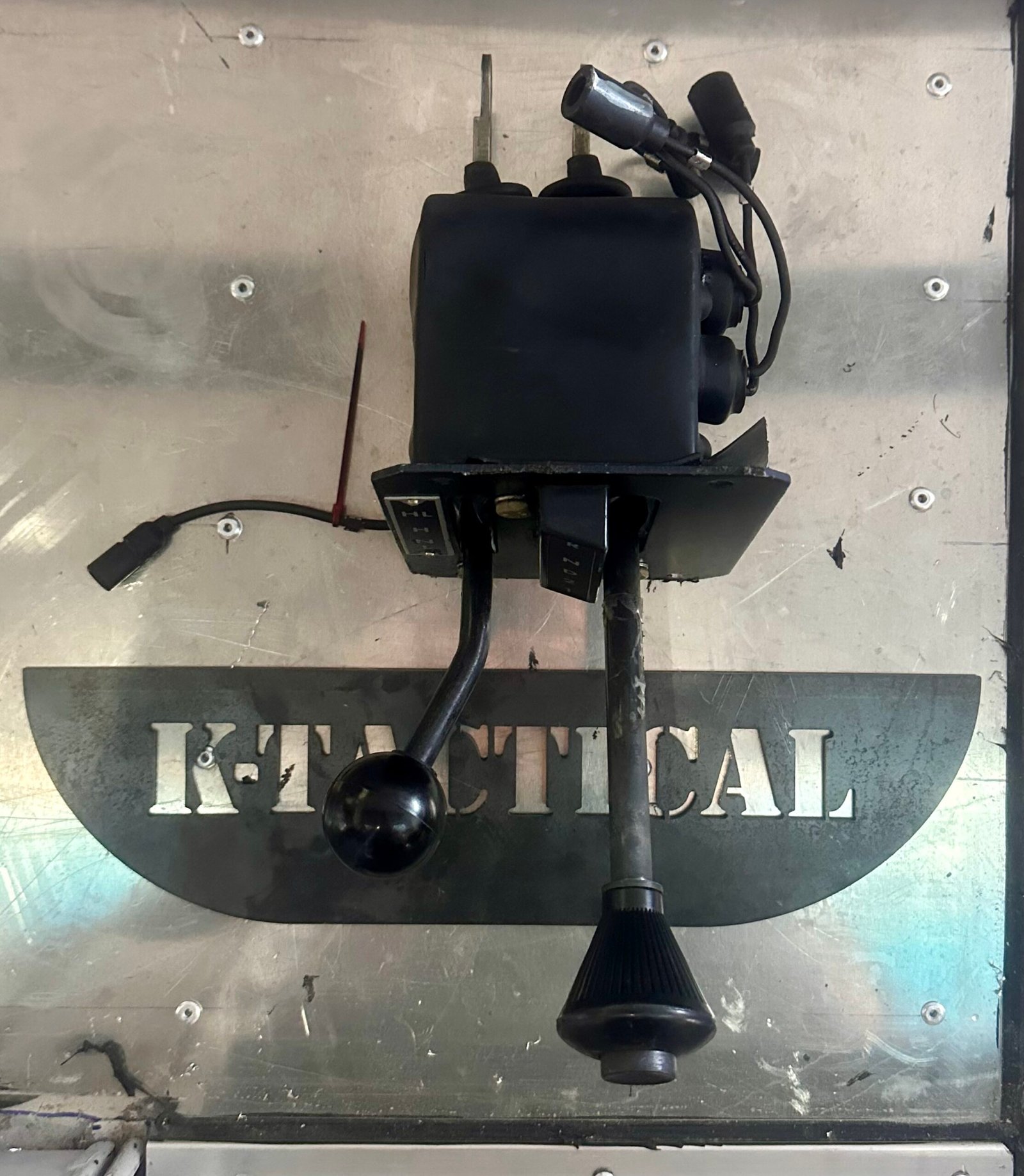

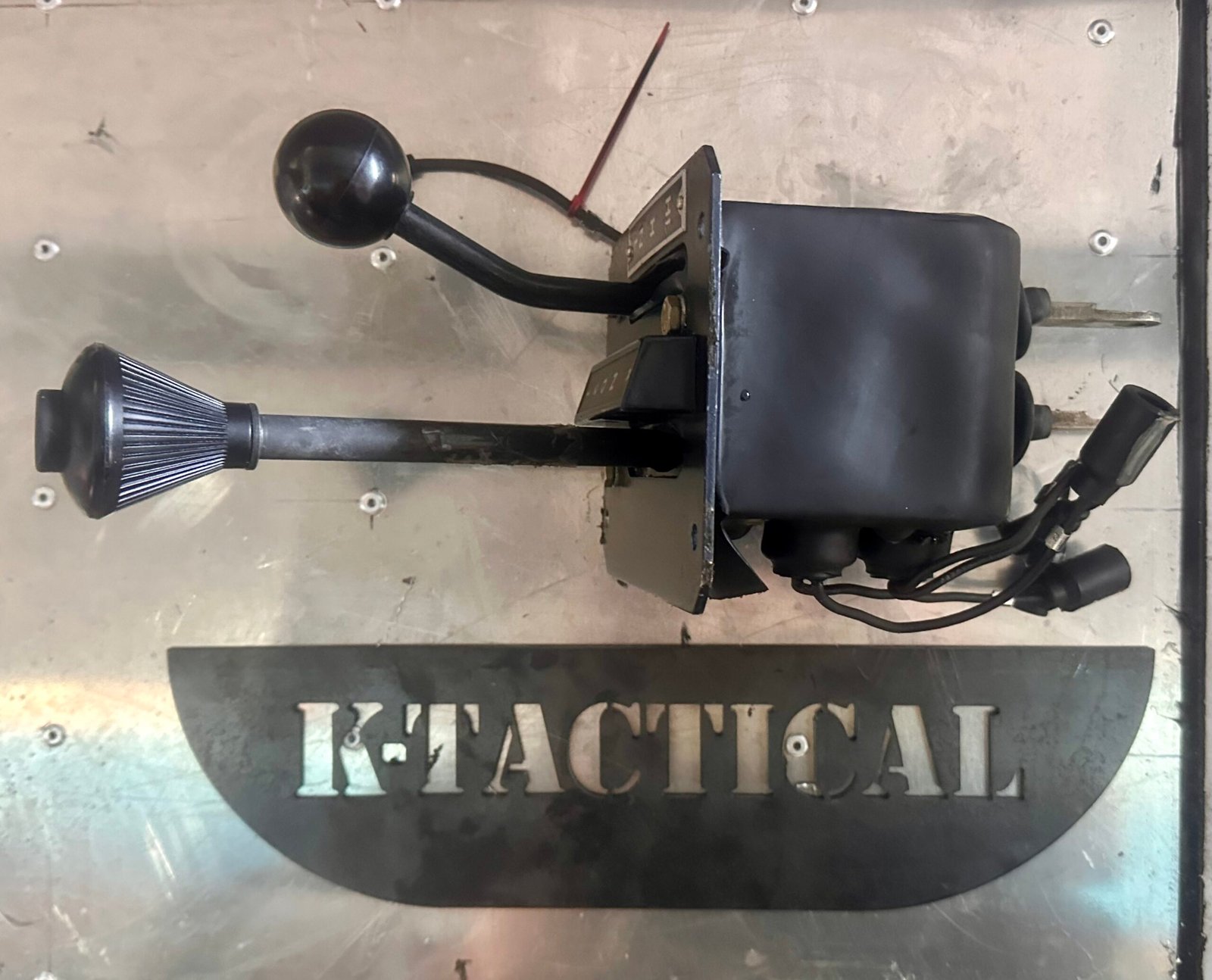

HMMWV Transmission Shifter Assembly – GM 3L80
THIS SHIFTER INCLUDES A NEW BACKUP SWITCH INSTALLED
This transmission control assembly is designed for AM General HMMWV vehicles equipped with the GM 3L80 3-speed automatic transmission.
The assembly features the standard PRND21 mechanical gate shifter, allowing the driver to manually select the transmission range.
The unit includes the dash-mounted bracket, shift linkage arms, electrical switches, and wiring connectors, making it a complete control assembly for Humvee transmission operation.
Vehicle Compatibility
This shifter assembly was used on HMMWV models equipped with the 3-speed automatic transmission, including:
• M998 HMMWV
• M1025 HMMWV
• M1038 HMMWV
• M1097 HMMWV
Features
• Mechanical PRND21 gate-style shifter
• Compatible with GM 3L80 automatic transmission
• Dual electrical switches (neutral safety + reverse light)

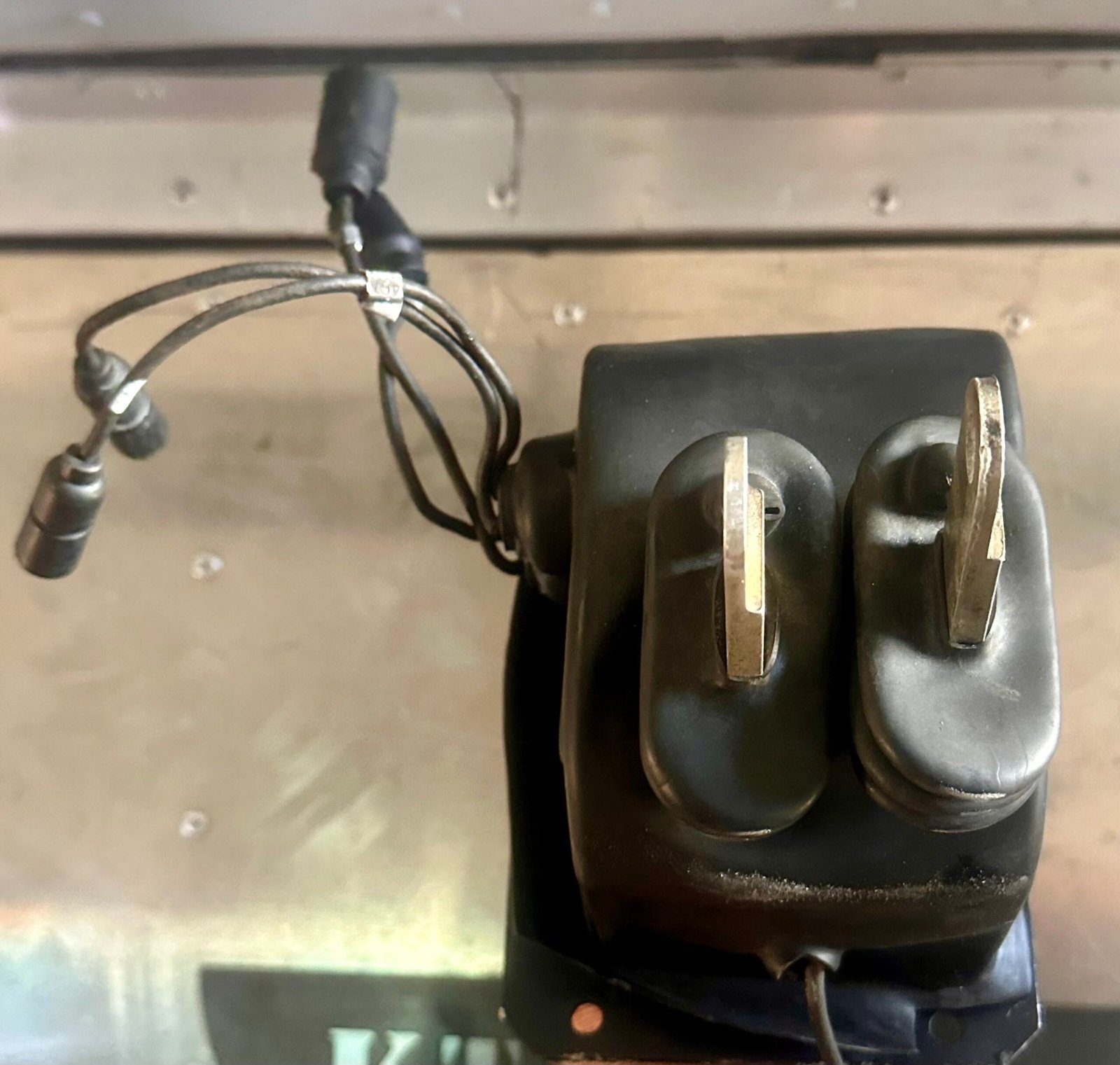

• Rubber bellows and twin linkage arms for shift cable connection
• Dash-mounted bracket assembly
Function
This assembly controls the transmission gear selection and provides the necessary mechanical and electrical interface between the driver controls and the vehicle transmission system.
The integrated switches allow the vehicle to:
• Enable neutral safety start protection
• Activate the reverse light circuit
Part Information
Part Name: Transmission Control / Shifter Assembly
Part Number: 5741561
NSN: 2520-01-188-5464
Transmission Type: GM 3L80 Automatic
Vehicle Platform: AM General HMMWV
